Apollo Quartz – Return Ends

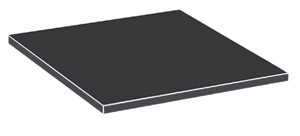

Part/Full Return

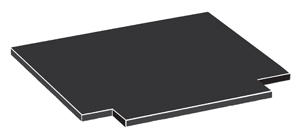

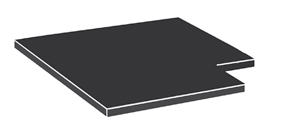

Double Notch

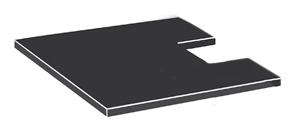

Triple Notch

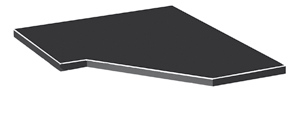

Internal Splay

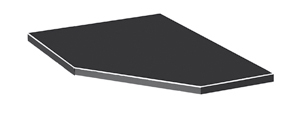

External Splay

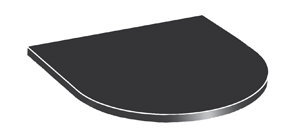

Double Radius*

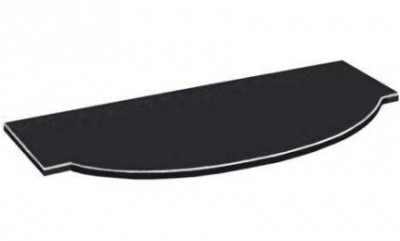

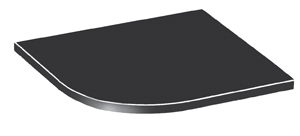

Single Radius*

* Internal profile edges on all edge detail other than bevel edge must have a radius of at least 60mm. Bevel edges don’t have this constraint as they are hand finished.

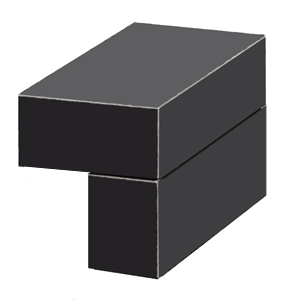

End Panels

5mm overhang

The normal joint for these materials will be a butt joint ending with a 5mm overhang. Also available as extras are Flush fitting butt joint and a flush fitting mitred joint. In all instances the panel will be manufactured to the correct height as this material is not easily scribed to the floor.
